RE: [PSUBS-MAILIST] Dome ;was Own submarine pen (Eurosub)

["Emile van Essen" <emile@airesearch.nl>]

Title: Re: [PSUBS-MAILIST] Own submarine pen (Eurosub)

Jon,



Conversion factor??

Operational depth estimate comes from GL table. If you look up the scale destruction test data in Stachiw’s book, it will fail at some 2500 M.



Emile



---

Van: owner-personal_submersibles@psubs.org [mailto:owner-personal_submersibles@psubs.org] Namens Jon Wallace
Verzonden: woensdag 15 juni 2011 5:39
Aan: personal_submersibles@psubs.org
Onderwerp: Re: [PSUBS-MAILIST] Dome ;was Own submarine pen (Eurosub)



Emile,

I assume you are not including a conversion factor to get the 500M depth estimate?

Jon

On 6/12/2011 7:10 AM, Emile van Essen wrote:

Hi Alan,



Nemo 100 makes the domes also with the hot pressing method.

Blowing is the simplest way and make the tooling is the least effort. Limit is 200 metres in my opinion.

Pressing is far better for roundness , material efficiency and thickness.

For the 24” / 610 mm OD. Dome we start with 35 mm plate. After forming it is still 35 mm on the edge and 25 in the apex!. Good for some 500 M ;-)



Emile





---

Geen virus gevonden in dit bericht.
Gecontroleerd door AVG - www.avg.com
Versie: 10.0.1382 / Virusdatabase: 1513/3703 - datum van uitgifte: 06/14/11

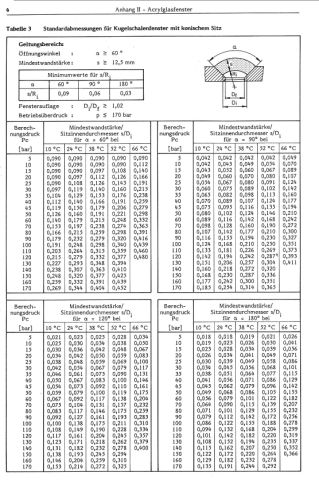

Attachment: AcrylicdomesGermanischerLloyd01.jpg
