RE: [PSUBS-MAILIST] Original KL-250 Blown Dome Specs

Brent & Vance,

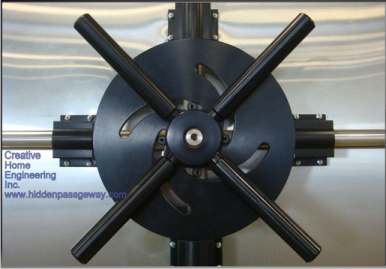

Came across this mechanism today which would be suitable for securing the hatch closed.  The end of the bolts have a slight bevel on them so when driven home by turning the hand wheel, more closure force is applied the further driver home.  Hopefully the attached image will make it through.

R/Jay





Resepectfully,

Jay K. Jeffries

Andros Is., Bahamas



Save the whales, collect the whole set.







From: owner-personal_submersibles@psubs.org [mailto:owner-personal_submersibles@psubs.org] On Behalf Of Brent Hartwig
Sent: Saturday, August 22, 2009 11:13 PM
To: PSUBSorg
Subject: RE: [PSUBS-MAILIST] Original KL-250 Blown Dome Specs




Vance,

That would probably be a good idea, huh.    I have a number of configurations in mind.  At this point its a matter of SS bevel gears, vs. leverage motion. Rotating dogs vs. clamping dogs.   I'll finish at least one config. and let you take a look at it, and we can go from there. I have a lot of reference material in this area. It's just a matter of blending together a few proven mechanical means with as many off the shelf parts as can be had.

Regards,
Szybowski





Attachment: 4-Point Door Lock_small.jpg
Description: JPEG image
