Emile,

I like the idea of pressing brass rods into the delrin to avoid epoxy
but in my case I am not using motors with a thrust tube. I've got fixed

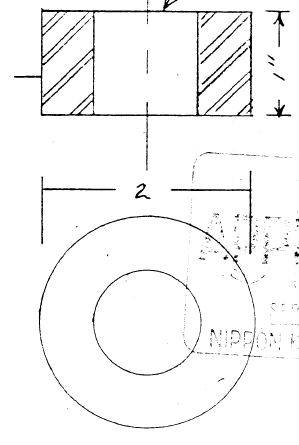

motors using a  thru-hull (see attachment) that requires a
penetrator-type cable.  I'd have to either have a head on the delrin on
the high pressure side or perhaps threaded on both ends to "bolt" it in
position.  But the bigger issue would still be sealing the cable sheath
which would either require epoxy or the blueglobe gland.  The blueglobe
doesn't sound like it stops creeping of the cable due to external
pressure though and would require taking Alan's approach of epoxying the
cable in a tube with a head, then passing that tube through the
blueglobe to prevent pressure creep of the cable into the cabin.

It would be nice to get away from epoxy completely but I'm not sure it's
possible in my kind of configuration.  By the way, blueglobe
documentation states a maximum pressure of 15 bar.  Do you believe this
is conservative based upon your own testing?

Jon


On 4/22/2015 2:06 AM, Emile van Essen via Personal_Submersibles wrote:
> Jon,
>
> (resend massage)
>
> Potting is okay but I switched to a pressure proof Delrin/ POM isolator.
> Brass contacts are pressed in a Delrin bushing. On the outside sealed with a
> 0-ring in the thrusters tube. See attachment Main advantage is that it is
> dismountable.
> BTW. I used the Rhino as they have a all metal construction
>
>
> Regards, Emile
>
>
