Ken,
Neat concept but it will take a VERY steep ramp and lots of
water to launch this unit. Should have good stability though.
R/Jay
Respectfully,
Jay K. Jeffries
Andros Is., Bahamas
A skimmer afloat is but a submarine, so poorly built it will not
plunge.
From:
owner-personal_submersibles@psubs.org
[mailto:owner-personal_submersibles@psubs.org] On Behalf Of Ken F
Sent: Thursday, May 10, 2007 12:35 PM
To: personal_submersibles@psubs.org
Subject: Re: [PSUBS-MAILIST] Vertical Hulled Sub
What an interesting concept! That's really different,
I was originally looking at the iterations of the "Florida Manatee"
and there was one which showed the side length-running ballast tanks were
turnable, so that the sub body could be rotated to vertical with the MBT's still
holding horizontal, providing surface support. It was just a quick sketch
but I used to think it had something to it.

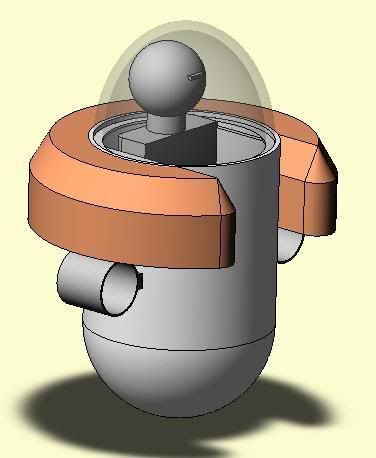

I've found the perfect picture of what I'm looking for but
can't figure out who made it. I'll put a link to it here and maybe
someone can shed some light on its designer. It looks like a SolidWorks
item... I saw it and I was going THATS IT!! THATS IT!!! lol. I've
already made modifications in my mind, decided equipment placement and made
some changes, but the basic idea was perfect.
I kept trying to improve on the MBT design, to improve
freeboard. I've decided that the inner edge of the MBT should have a
vertical lip, which fits into a locking groove which runs around the hull, and
locks it into place from underneath. Then several bolted stantions from
the outer lip to the hull would provide ridgidity, and !!! would make the whole
MBT somewhat easily removable. There would be just enough cast lead
or steel on the inside at the bottom to always maintain a vertical attitude, so
as not to spill a load sideways. And the emergency drop weight is
actually a steel/lead ring, which slips over the bottom end of the hull, and is
held in place by two thru-hulls so that it fits semi snug at the very lower
edge of the hulls cylindrical part. The props would most likely be
replaced with a single prop stationed via an arm straight out in front of the
hull, and trainable, allowing for forward, sideways and rearward
movement. VBT would likely be in a seperate pressure tank underneath the
MBT shroud. The trailering sounded interesting.
I decided on a vertical trailering approach, in order to avoid
hassle. The trailer would have a circular stand which fits around
the hull, and holds it upright, though is hindged from the back, to allow it to
open up like arms, un-hugging the hull when it is in the water and allowing it
to bob away. If anyone has actually been able to visualize any of the
things ive just mentioned, while looking at the picture and go "yeah I
think I see what he means", let me know what you think.
Brian Cox <ojaivalleybeefarm@dslextreme.com> wrote:
Yes,
my sub is designed like this. I don't have a dome but I will be using
standard viewports.
-----
Original Message -----
Sent: Thursday, May 10,
2007 04:24
Subject: Re: [PSUBS-MAILIST]
Vertical Hulled Sub
Has anyone else built or created any design ideas using a
vertical hull for a one person, very small sub? where you would sit
upright, and view out the dome which is also the hatch? I've solved what
I think are many of the design problems inherent, but there's usually always
someone who's thought of something else, or has more experience.
Anyone?
Ken
