Pat Regan - Nautilus Minisub


Sub name: Nautilus Minisub
Designer: Pat Regan
Builder: Pat Regan
E-mail Address: vulcania@interpac.net
Web Links:
     NAUTILUS MINISUB:
     http://members.spree.com/sip/gnip/nemo/nautilus.html

     SIMPLIFIED SUB DESIGN MATH:
     http://members.spree.com/sip/gnip/nemo/submath.html

Description: This functional 1/10th scale Disney Nautilus replica
was hand-crafted from steel by Pat Regan, and is pictured here
during proving tests in 1991.  Regan believes his to be the World's
first "real submarine" of this famous fictional design in any scale.

STATISTICS:

    18 feet X 1.25 tons

    welded steel double-hull construction

    two-place pressure hull

    integral "hydrobatic" air-water ballast system

    24 VDC 4HP electric motor and prop (4 knots X 2.5 hours)

    manual "aircraft-type" guidance controls

    life support, sonar, etc.

    Maximum design operating depth: 100 FSW

    The NAUTILUS MINISUB is presently in Hawaii receiving finishing
touches to the exterior detailing, prior to continued open water
operations in the Pacific Ocean.

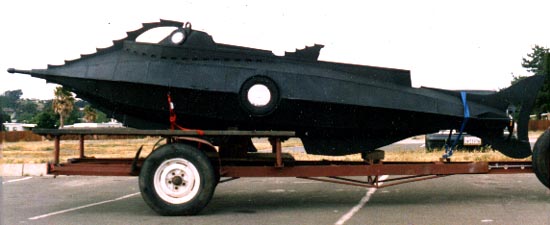

Nautilus Minisub - on trailer

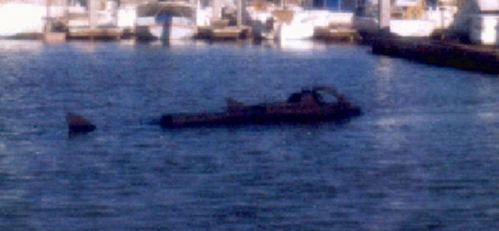

Nautilus Minisub - on surface

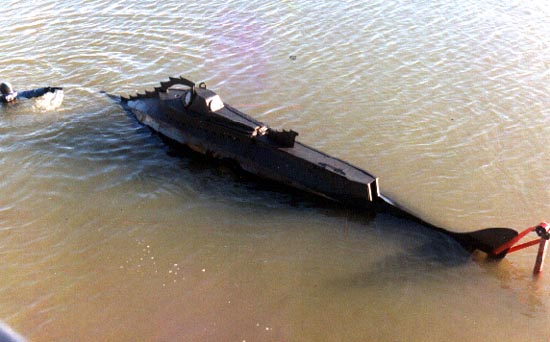

Nautilus Minisub - on launching
Pat Regan holding the scale "Pilot-house cover" made from sheet metal, rivets, and clear plastic hemispheres. Nautilus Minisub - Pilot-house cover

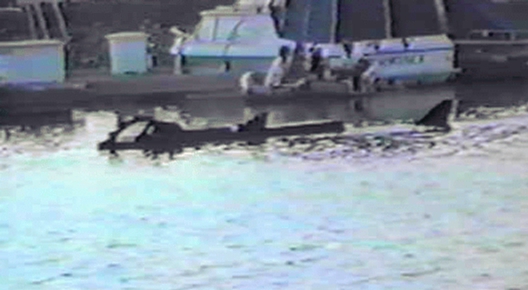

Nautilus Minisub - on surface

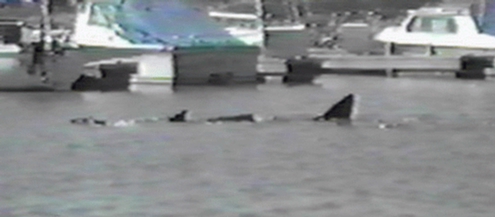

Nautilus Minisub - diving
