Thanks again all for the advice.

I'll have a look for brushless ones.  That seems like a good idea.

@ Alec.  Thanks for the offer of the motors.  Do you know what they are?  I
need 4 so i'd have to get a couple more.  I would prefer all the same.  I
can see if they would be suitable for me and if i can get any similar.

I shall keep researching for now.
Regards
James



On Wed, 22 Nov 2023 at 06:02, Alan James via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> James,
> buy a brushless motor. There are Chinese trolling motors in that range
> with brushless motors.
> Alan
>
> Sent from Yahoo Mail on Android
> <https://mail.onelink.me/107872968?pid=nativeplacement&c=Global_Acquisition_YMktg_315_Internal_EmailSignature&af_sub1=Acquisition&af_sub2=Global_YMktg&af_sub3=&af_sub4=100000604&af_sub5=EmailSignature__Static_>
>
> On Wed, 22 Nov 2023 at 5:57 am, James Frankland via Personal_Submersibles
> <personal_submersibles at psubs.org> wrote:
> Hi All
>
> Anyone got any suggestions for this?
>
> I am thinking about what motors to get for my new boat.  I designed it up
> using dimensions from my existing Minn Kota 80's.
>
> On Jodie B I have 3 of these which totals 240lb thrust. which is more than
> i need really.  I can run on just the rear for surface driving.
>
> On the new boat i will have 4 motors.
>
> Im thinking of smaller ones.  Something along the lines of 4 x 40-50lb
> would probably be ok.
>
> The biggest thing I want to try and avoid is the difficulty of the wire
> location that i have on the Minn Kota 80's.  The location is ok if the
> cable runs up the shaft as intended in the standard motor design as you can
> pull them tight and clear, but once I potted the replacement shaft, the
> cables then become very troublesome to keep out of the way of the
> armature\commutator\brush assembly.
>
> Some other people have experienced this as we have discussed it before.
>

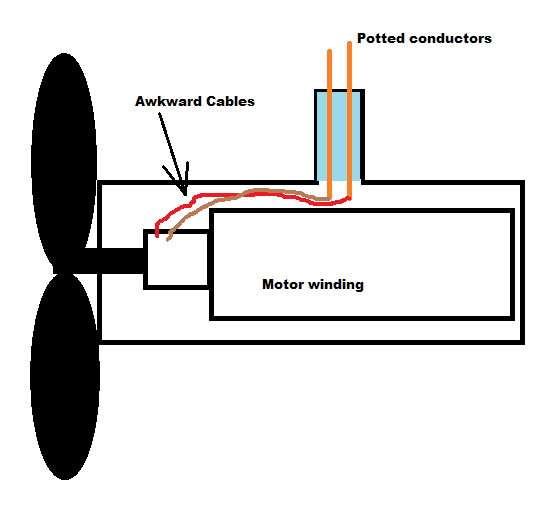

> Rubbish drawing attached.  You can see the blue part is the potted
> connections which make the wires onto the brushes really tricky.
>
> [image: image.png]
>
> Does anyone know of a motor that would be easier to modify or where the
> shaft hole is in a more convenient place?
>
> Any suggestions?
> Kind Regards
> James
>
>
