[PSUBS-MAILIST] Skadoc Question

[Antoine Delafargue via Personal_Submersibles]

M16 takes 11mm max cable,
M20 takes 14mm max cable diameter

regards
Antoine

On Mon, May 11, 2020 at 5:46 PM James Frankland via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> Emile,
>
> What size cables do the M16 and M20 take?
>
> Better give me a price as well.
>
> Thanks
>
>
>
> On Mon, 11 May 2020 at 15:24, Jon Wallace via Personal_Submersibles <
> personal_submersibles at psubs.org> wrote:
>
>> The company that originally purchased the K600 required commercially
>> available thru-hull connectors. It wasn't an issue of the 350 design being
>> weak, they just wanted something they could order rather than manufacture.
>>
>> Jon
>> On Monday, May 11, 2020, 05:31:15 AM EDT, James Frankland via
>> Personal_Submersibles <personal_submersibles at psubs.org> wrote:
>>
>>
>> Hi All
>> Continued to work on Skadocs new battery pod this weekend.
>>

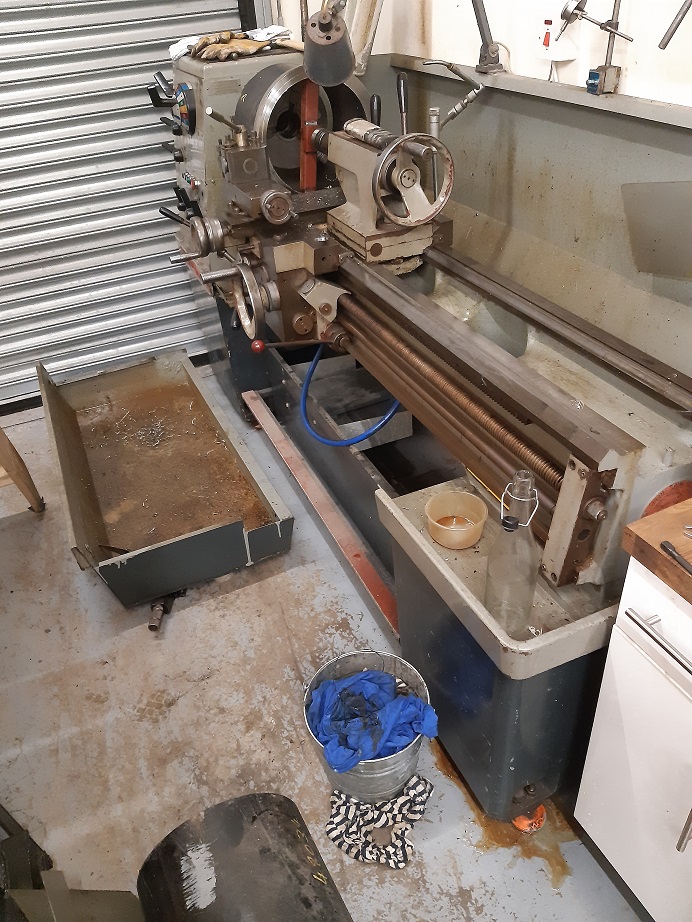

>> I was making good progress until the coolant pump on my lathe broke
>> down.  Its all blocked with sludge.  Not looking forward to cleaning that
>> out....
>>
>> Anyway, I have a question.  How do you guys think I should take the power
>> from the pod into the hull?
>>
>> I found the K350 battery pod electrical through hulls tiresome to make
>> and fit.  So I want to do it different this time.
>>
>> Options.
>>
>> 1.  Proper sub conn bulkhead connector.
>>
>> 2.  Pipe fitting with a valve and detachable cables.  In the event of a
>> leak in the pod, the cables could be pulled clear and the valve closed.
>>
>> 3.  Blue Globe or similar cable glands.  Two on the pod, two on the
>> hull.
>>
>> Any ideas?  There are pro's and cons of each.
>>
>> [image: Pod.jpg]
>>
>>
>>
>>
