[PSUBS-MAILIST] Skadoc Question

[hank pronk via Personal_Submersibles]

 James ,All these options are good, in fact the only difference is elegance and cost.  When it comes down to it I go for the best cost solution as long as reliability and performance are matched.  I have pipe thread fittings with heavy threaded rod potted in the centre with cable ends potted as well.  Very cheap to make, just not as sexyHank

    On Monday, May 11, 2020, 3:29:00 AM MDT, James Frankland via Personal_Submersibles <personal_submersibles at psubs.org> wrote:

 Hi AllContinued to work on Skadocs new battery pod this weekend.

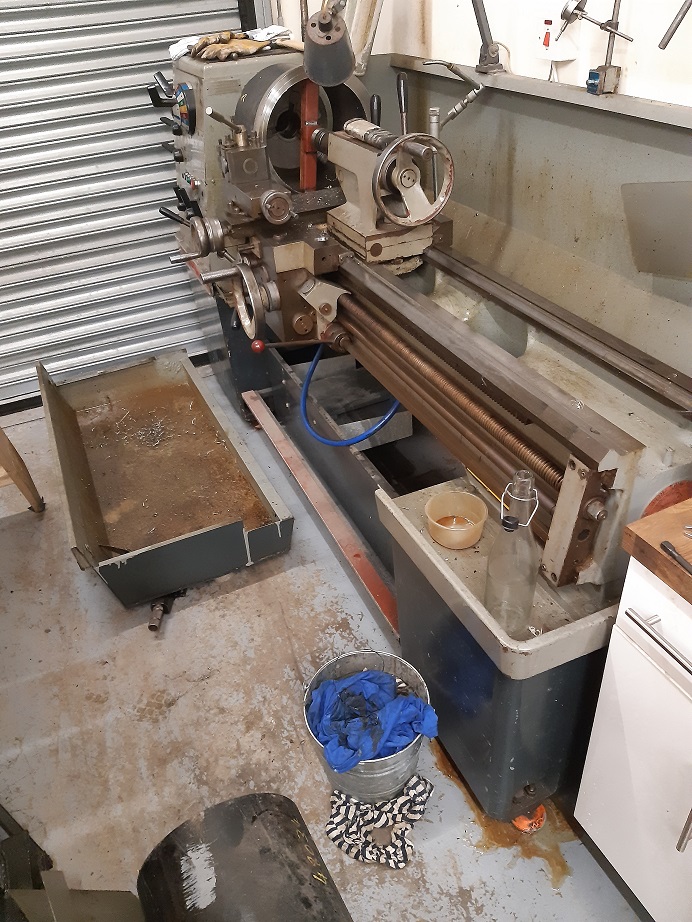

I was making good progress until the coolant pump on my lathe broke down.  Its all blocked with sludge.  Not looking forward to cleaning that out....
Anyway, I have a question.  How do you guys think I should take the power from the pod into the hull?
I found the K350 battery pod electrical through hulls tiresome to make and fit.  So I want to do it different this time.
Options.
1.  Proper sub conn bulkhead connector.
2.  Pipe fitting with a valve and detachable cables.  In the event of a leak in the pod, the cables could be pulled clear and the valve closed.
3.  Blue Globe or similar cable glands.  Two on the pod, two on the hull.
Any ideas?  There are pro's and cons of each.
