[PSUBS-MAILIST] Main pilot console

[David Colombo via Personal_Submersibles]

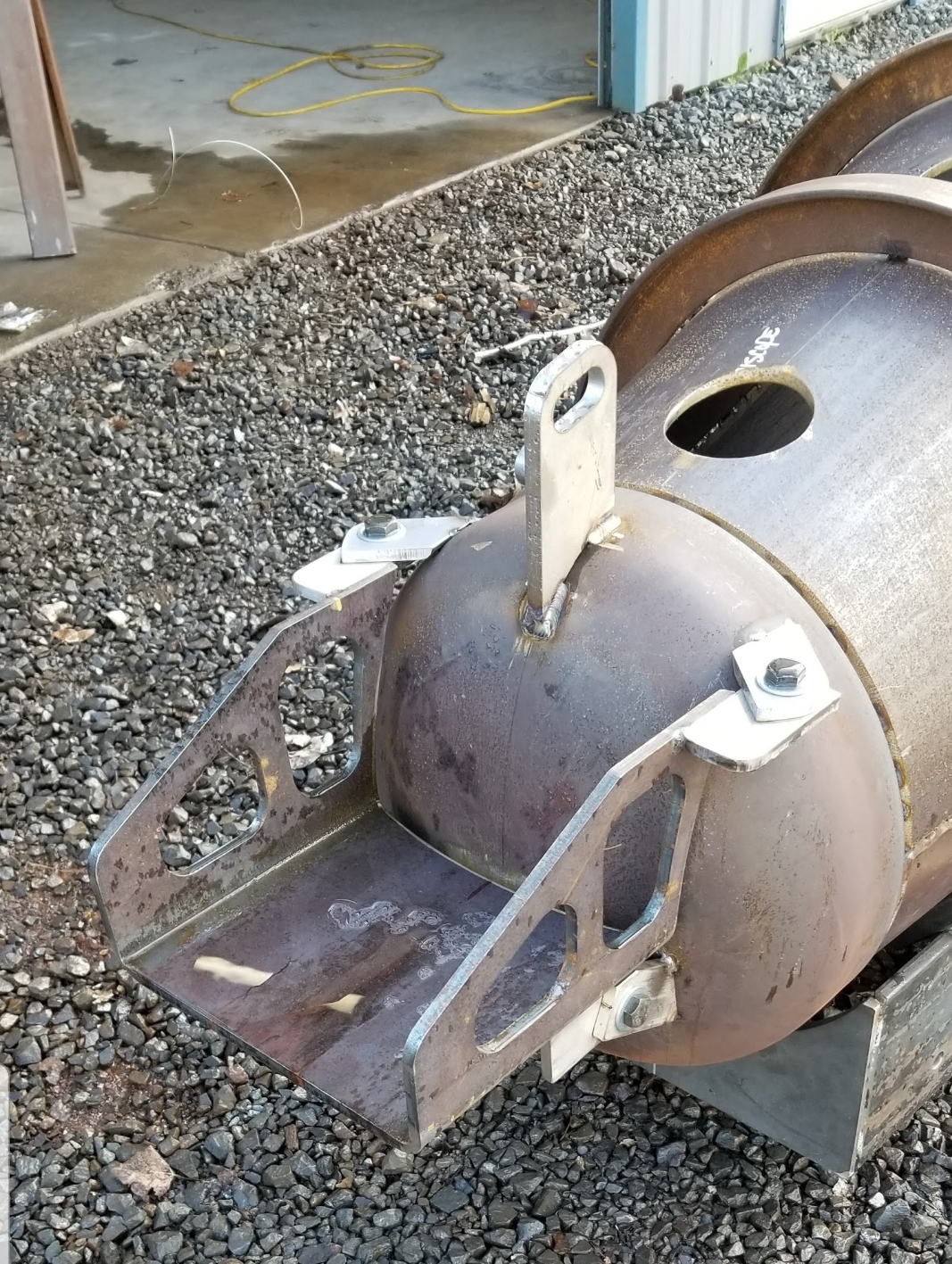

Hi Tim, the front pilot position will have a limited console, mainly as a
film studio. The front nose section is designed to hold a red camera and
lighting, or scientific gear, to be controlled from pilot one. I am working
on a concept for a pair of manipulator arms that would be controlled there
as well. Not that i hsve anything else to work on in the meantime.

On Thu, Apr 2, 2020, 9:18 AM T Novak via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> David,
>
> Since your sub is a two-holer, are you planning on duplicate identical
> panels and controls in the front cockpit, or merely have a depth gauge and
> compass? Will you be having duplicate flight controls?  I am just thinking
> that for economical reasons most tandem seat homebuilt aircraft only have
> an altimeter and airspeed along with stick and rudder controls in the
> passenger cockpit.
>
> Tim
>
>
>
> *From:* Personal_Submersibles [mailto:
> personal_submersibles-bounces at psubs.org] *On Behalf Of *David Colombo via
> Personal_Submersibles
> *Sent:* Thursday, April 2, 2020 12:37 AM
> *To:* Personal Submersibles General Discussion <
> personal_submersibles at psubs.org>
> *Subject:* [PSUBS-MAILIST] Main pilot console
>
>
>
> Today I continue working on my main pilot console. Yet to install, hp air
> gauges, o2 gauge, touch screen plc, tablet linked to external cameras.
> Already set left to right, light switches with indicators for both internal
> and external lighting, hatch closing indicators, air circultation vent,
> garmin 3d forward sonar, vhf radio, hummingbird depth to bottom gauge,
> richie compass, auxiliary low voltage power supplies and digital battery
> status indicators. Each of the 4 raised panels can be removed to access
> interior wiring if necessary. This ss console will be sitting on a dual arm
> rest which will be holding the multi axis flight joystick port side, and 6
> thruster manual speed controls on starboard arm rest. The flight stick will
> also have overide throttle controls depending on flight characteristics
> desired. At least thats the plan.
