Hi guys,

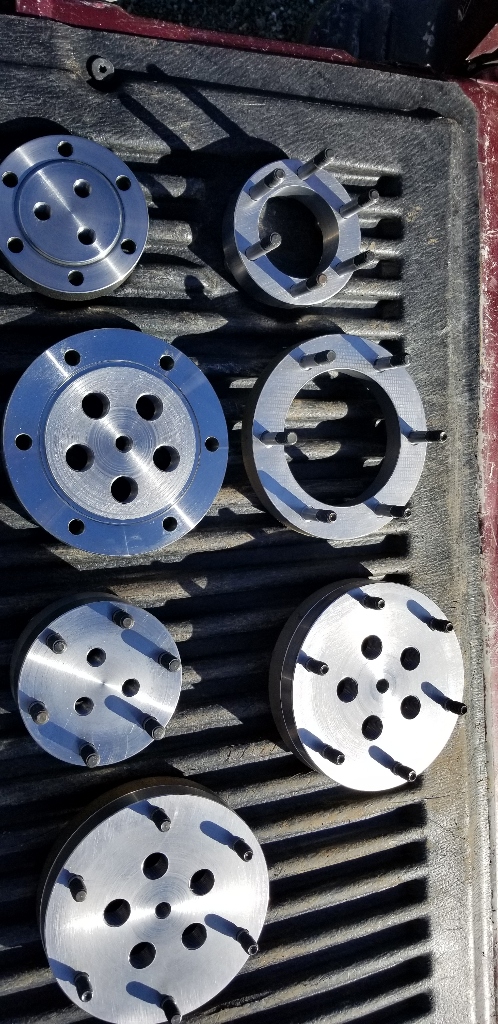

Just got all my 4" and 6" thru hull plates that I had fabricated for the

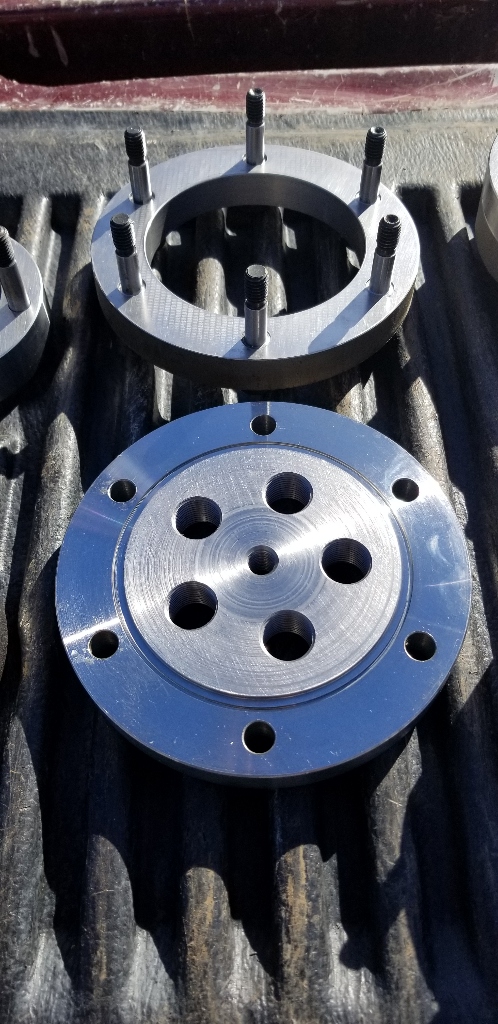

SeaQuestor. I designed them with shoulder bolts machined down and press fit
into the backing plate fit for future modificatations or bolt failure. The

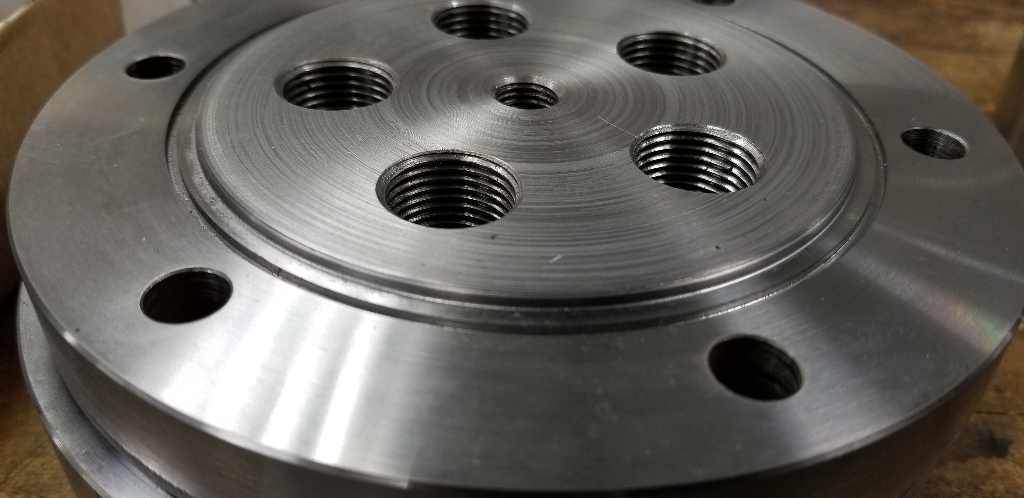

outside plates are machined down with a shoulder for alignment to the
interior id and with an oring seal. Each plate will accomodate (5) 3/4"
blue globe fittings. The center hole is for the carbon fiber air line to be
routed to the thrusters for air compensatation. The 4" plates accomodate

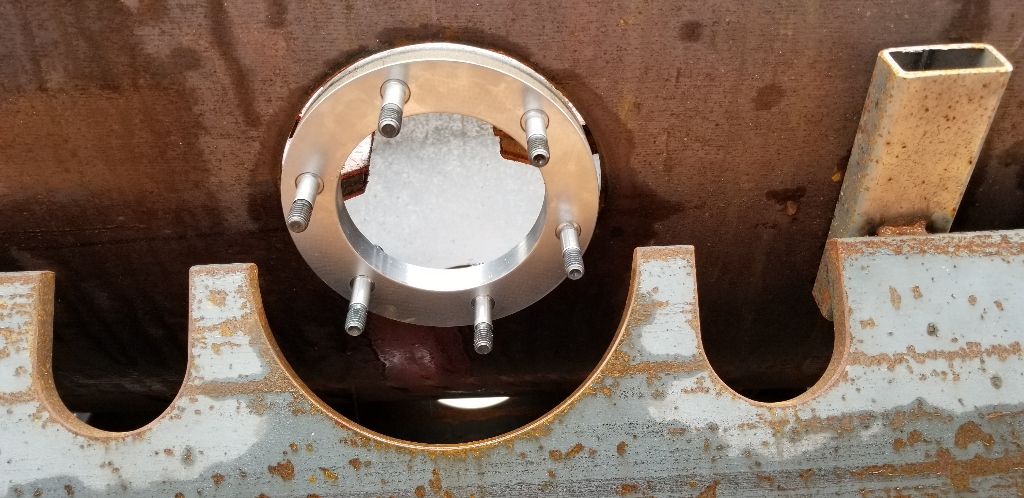

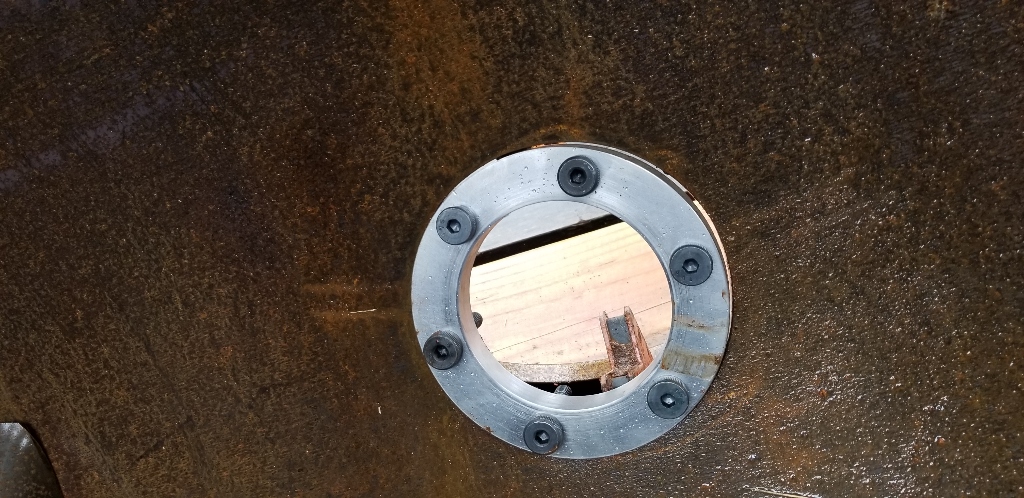

1/2" blue globe fittings. Test fitted the 6" and I'm happy the
accessability. Almost ready to send to the welder.
David
