Hank,
I am hoping I can dial up the over pressure to the point that it
keeps the oil down. (like blowing in to a straw forcing the liquid out)
The oil goes in through a clear tube so I can monitor the level.
I am not confident though; however oil compensation has been
around for a long time.
Unfortunately I can't put a one way valve in the system as the
pressure won't be able to escape on ascent.

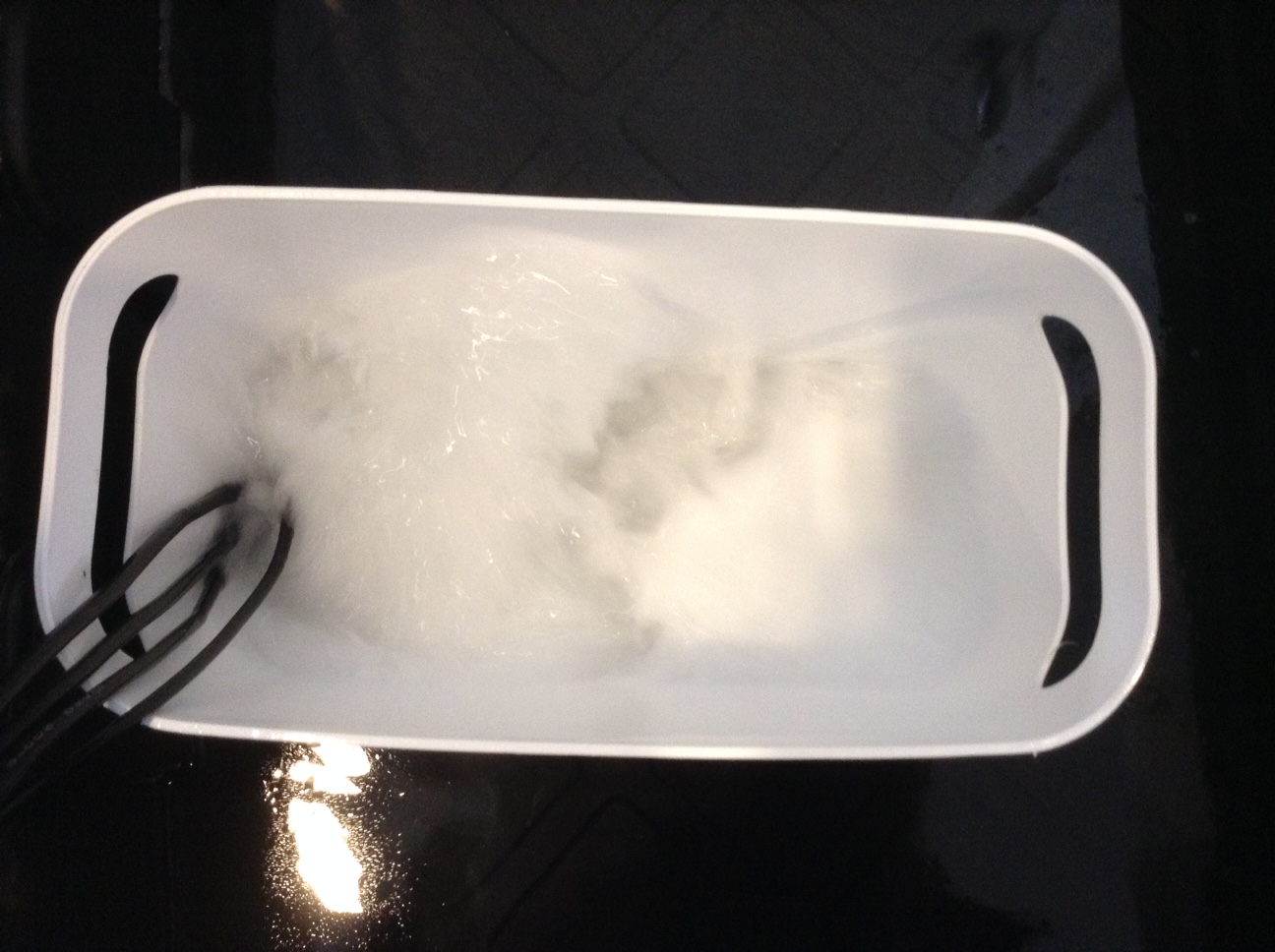

Below is the motor in oil without the proppeller.
Alan


> On 4/10/2018, at 1:34 AM, hank pronk via Personal_Submersibles <personal_submersibles at psubs.org> wrote:
>
> Alan,
> I have had similar situation, the oil will still come up the tube.  The over pressure makes no difference, unless there is a piston or diaphragm blocking the oil.
> Hank
>
> On Wednesday, October 3, 2018, 2:53:29 AM MDT, Alan via Personal_Submersibles <personal_submersibles at psubs.org> wrote:
>
>
> Hank,
> yes very patient "lol" as this might not be the final version.
> I have tested the motor out of the housing in a bucket of oil & established
> that it could only be run at 30 Amps without overheating. It causes quite
> a turbulence running in oil with no prop on due to the open design of a rotating
> back section. It will want to force oil out of the housing & up the oil feed tube,
> but I am hoping the overpressure from my oil compensator will keep the oil
> in around the motor.
> Am learning a lot on each attempt.
> Alan
>
>
>
>> On 3/10/2018, at 9:06 PM, hank pronk via Personal_Submersibles <personal_submersibles at psubs.org> wrote:
>>
>> Alan, your patience is amazing.  I would be itching to test it before sending it away for anodizing.
>> Hank
