[PSUBS-MAILIST] SeaQuestor build update

[David Colombo via Personal_Submersibles]

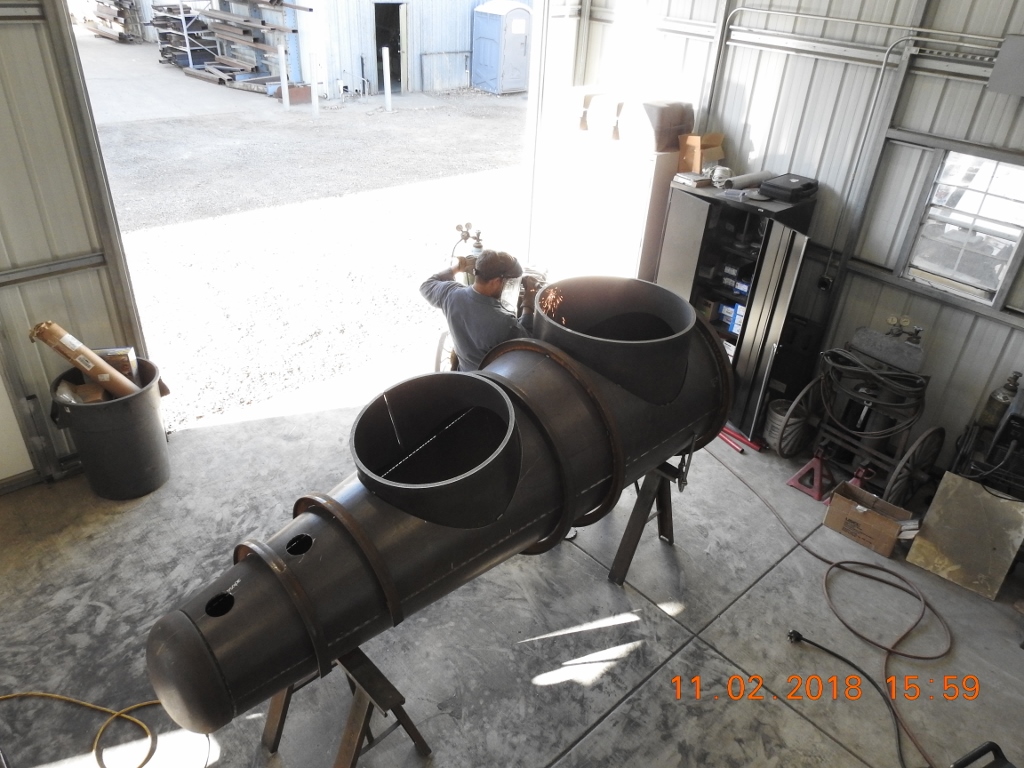

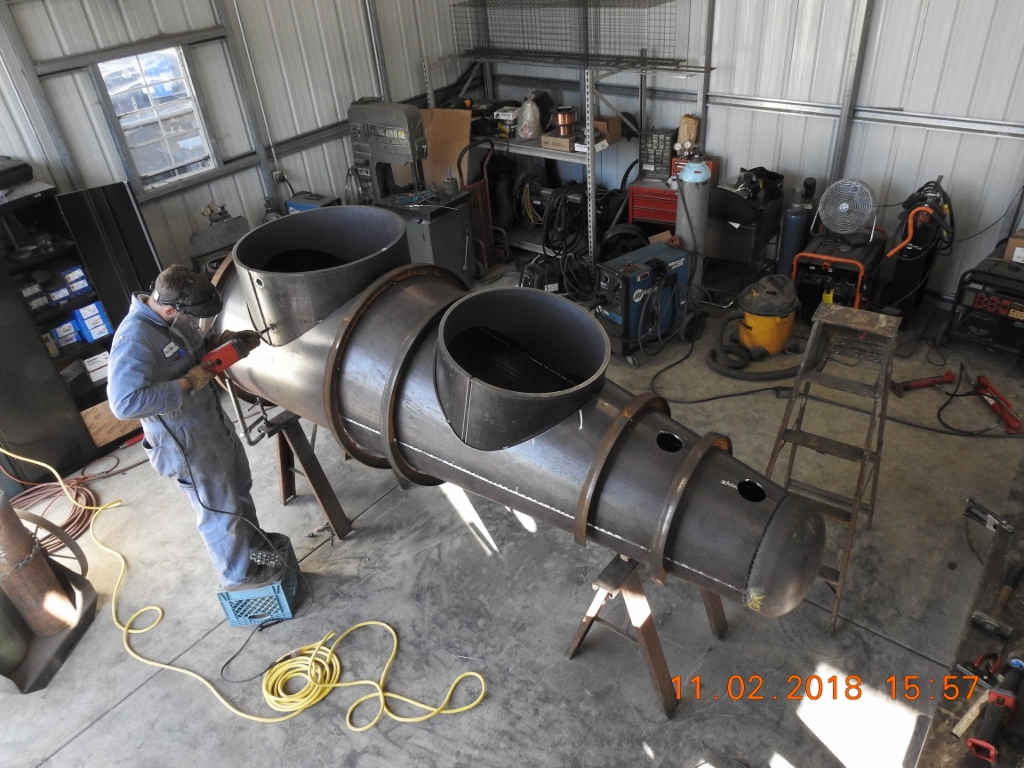

 Hi guys, the SeaQuestor pressure hull is well underway. All sails are fit

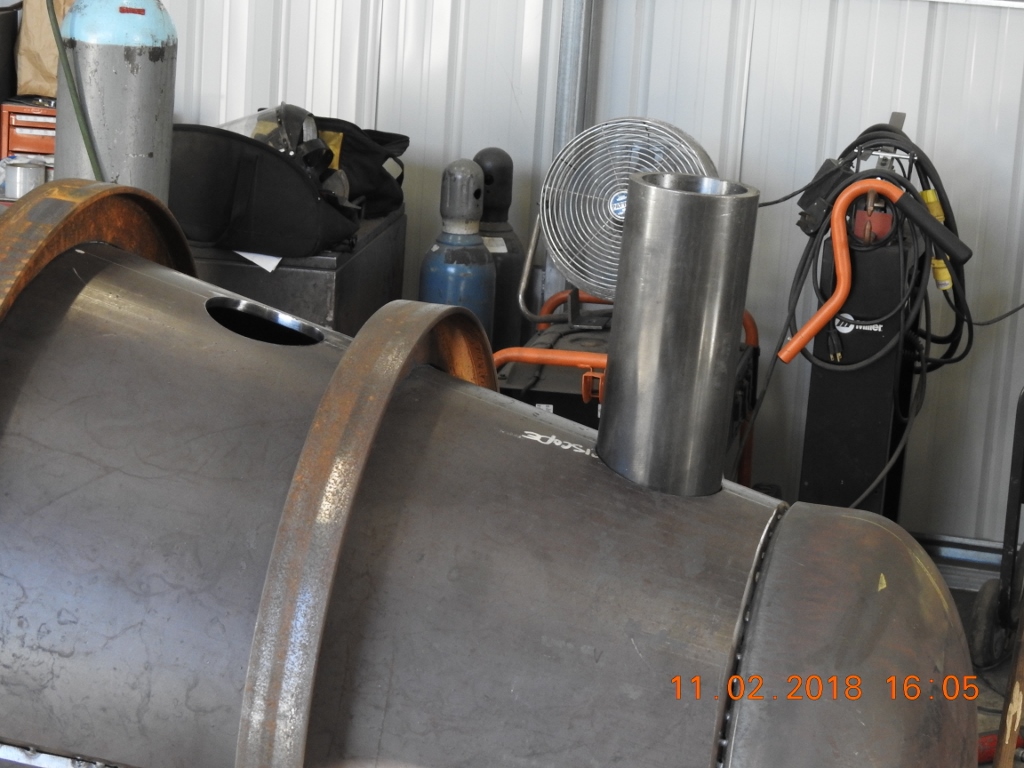

and tacked, all thru hull openings are finished.  Even the periscope tube
was fit today. still need to complete its penetration thru the bottom of
the hull.  Next week the rear tank and thruster rack, forward camera mount,
and bottom rail to be completed. I expect to pick up the completed hull
with the trailer the next  week. Then off to the sand blaster and then the
welder. This weekend's job is to get the trailer prepped.

I do have a question for the group. I am debating as to whether to weld the
lower frame rail system to the pressure hull, or weld tabs to the hull and
then bolt to the frame rail which would allow for removal. The frame rail
system will hold the drop weight system. I would like your thoughts.

Best Regards,
David Colombo

804 College Ave
Santa Rosa, CA. 95404
(707) 536-1424
www.SeaQuestor.com
