[PSUBS-MAILIST] The new guy k250 build

[emile via Personal_Submersibles]

Hi Frank,



Welcome to the Group.  As Brian said it is better to design the sub for deeper.

The safety factor is also higher on a shallow diver..

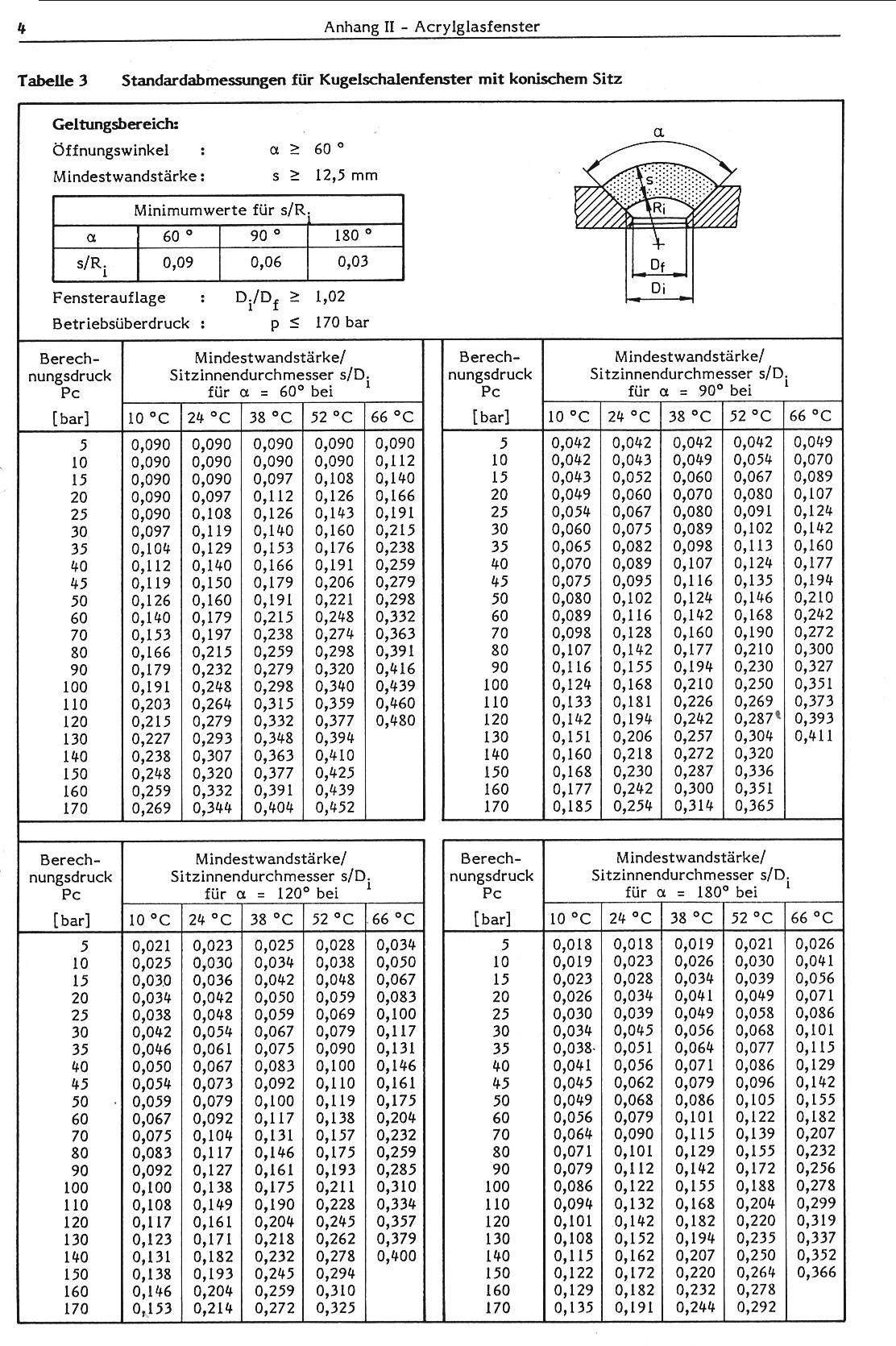

Attached a useful table  from the GL. 1Bar is 10 meter/ 30 Ft dive depth



Br, Emile



Van: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] Namens Frankie Bowman via Personal_Submersibles
Verzonden: vrijdag 3 februari 2017 4:13
Aan: personal_submersibles at psubs.org
Onderwerp: [PSUBS-MAILIST] The new guy k250 build



Hey my name is frank building a k250 I'm only operating at 20 feet deep any suggestions on acrylic dome thicknesses?

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20170203/e06572fd/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AcrylicdomesGermanischerLloyd01.jpg
Type: image/jpeg
Size: 425643 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20170203/e06572fd/attachment-0001.jpg>
