[PSUBS-MAILIST] actuated valves?

Hugh Fulton via Personal_Submersibles personal_submersibles at psubs.org
Tue Apr 18 16:39:29 EDT 2017


James,

That blow off valve is operated by vacuum assisted by excess pressure (4psi or x ).  It would be a cheap safety valve but can’t see it working for MBT s.

Am I missing something?  Hugh



From: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] On Behalf Of james cottrell via Personal_Submersibles
Sent: Sunday, 16 April 2017 3:10 PM
To: Personal Submersibles General Discussion
Subject: Re: [PSUBS-MAILIST] actuated valves?

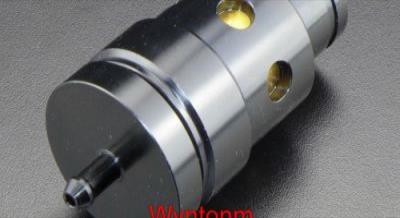

4 psi spring return pneumatic valve for turbo applications might be an option-



1 <http://www.ebay.com/itm/1-25mm-OD-Inlet-BOV-Blow-off-Valve-Turbo-Bypass-Brass-Piston-Black-/172619314317?hash=item2830e9b48d:g:zfMAAOSwEOxXP6-i&vxp=mtr> " 25mm OD Inlet BOV Blow off Valve Turbo Bypass Brass Piston Black | eBay











Text Box: $ 15.75




  <https://s.yimg.com/nq/storm/assets/enhancrV2/23/logos/ebay.png>


1" 25mm OD Inlet BOV Blow off Valve Turbo Bypass Brass Piston Black |...


1" 25mm OD Inlet BOV Blow off Valve Turbo Bypass Brass Piston Black | eBay Motors, Parts & Accessories,...







  _____

From: james cottrell via Personal_Submersibles <personal_submersibles at psubs.org>
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Sent: Saturday, April 15, 2017 12:45 PM
Subject: Re: [PSUBS-MAILIST] actuated valves?



Alec,

You might try a Turbo blow off valve.



  _____

From: Alec Smyth via Personal_Submersibles <personal_submersibles at psubs.org>
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Sent: Saturday, April 15, 2017 8:13 AM
Subject: [PSUBS-MAILIST] actuated valves?



Hi all,



I'm mulling over options for re-plumbing Shackleton's MBTs. I can go with re-positioned tubing or remotely actuated valves. In principle the tubing is easier, but I'm trying to think through all possibilities before deciding, and just thought of a new option. There's six tanks per side, and the tanks are small so it would be a challenge to put a mushroom valve inside each tank. Besides, that would be a dozen valves. However, I could also do just two valves per side, mounted outside and above the tanks, with very short hoses or tubes leading from three tanks to each valve. There is space, and because the valves would be outside the tanks I have a lot more freedom for the size or geometry of the valves. Maybe even normal ball valves actuated by a little air cylinder. This system would allow for fore-aft and side-to-side control, and would be highly resistant to list-induced water blocking.



Anyone have thoughts on the KISSest way to control valves? For example, something that could work with unregulated 3K psi air?





Thanks,


Alec
