[PSUBS-MAILIST] hatch detail

[Sean T. Stevenson via Personal_Submersibles]

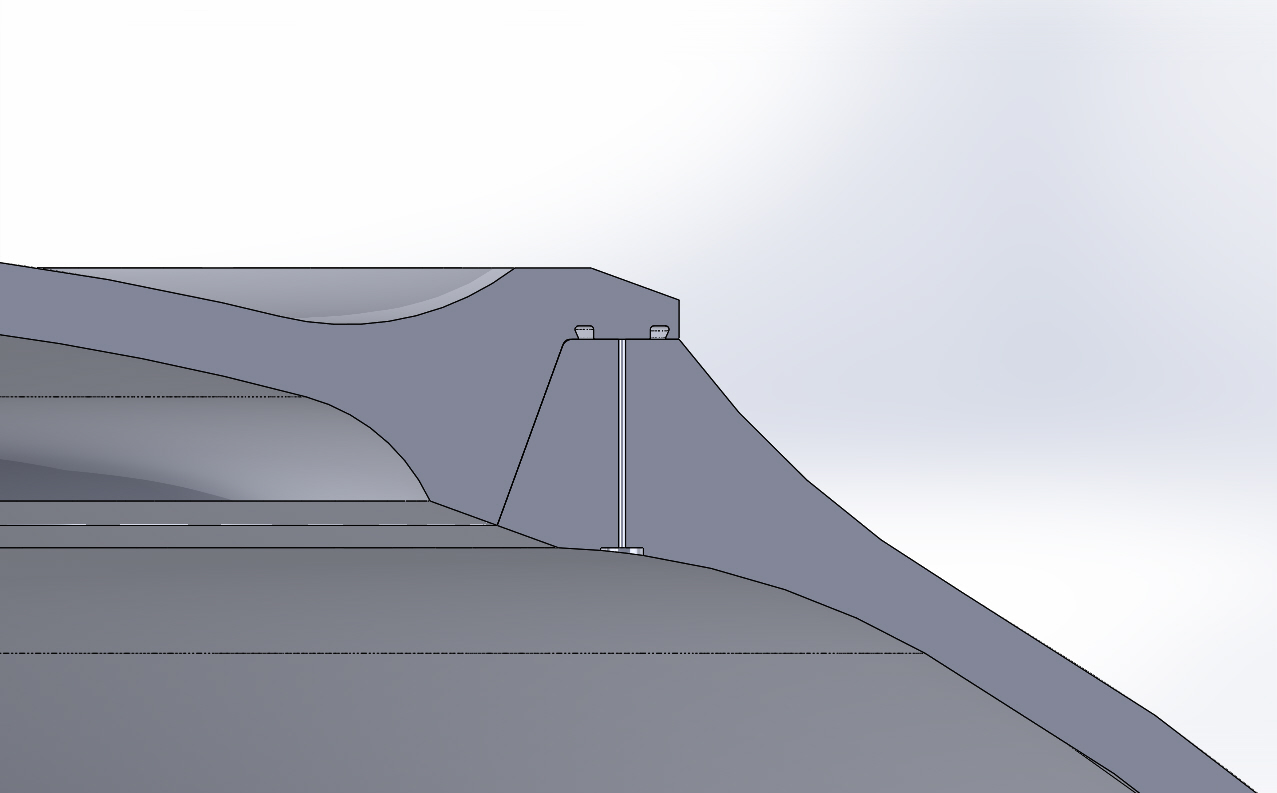

I sketched the double o-ring seal idea on one of my hatches, to
illustrate what I was getting at.  Image is attached.  The channel
through the pressure boundary would connect to a vacuum pump and
pressure transducer.

Sean

-------------- next part --------------
A non-text attachment was scrubbed...
Name: seal image.JPG
Type: image/jpeg
Size: 110105 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160316/144816f6/attachment-0001.jpe>
