[PSUBS-MAILIST] Sub on a Zodiac carrier was AW: Maynard's sub boat
MerlinSub@t-online.de via Personal_Submersibles
personal_submersibles at psubs.org
Fri Aug 12 12:31:35 EDT 2016
fourth picture..
-----Original-Nachricht-----
Betreff: Re: [PSUBS-MAILIST] Sub on a Zodiac carrier was AW: Maynard's sub
boat
Datum: 2016-08-12T04:48:49+0200
Von: "hank pronk via Personal_Submersibles"
<personal_submersibles at psubs.org>
An: "Personal Submersibles General Discussion"
<personal_submersibles at psubs.org>
Doug,
I think the zodiac is a great idea, you will have to play with an easy way
to attach and detach. You might want to consider a CT enclosure like Emile
has. That should be easy enough to rig up on Snoopy. The way a K250 is
built is not ideal for big seas, but you have options. As mentioned the
Clear CT enclosure, you could even look at a K350 style CT with a regular
hatch. I would go with a small 18 inch hatch to keep it real light. It
would be a piece of cake to add a new removable CT. You could have it as
an option, depending on dive conditions.
Hank
On Thursday, August 11, 2016 7:29 PM, Douglas Suhr via
Personal_Submersibles <personal_submersibles at psubs.org> wrote:
Prohibited weapons aside, yes I like the idea of going the zodiac route for
these reasons: cheap, simple and big bumper. Just not sure how well it
would work with a tall/tankish design like Snoopy's.
Last April we took the Whaler out onto the Atlantic several miles out. That
boat is one of the sturdiest boats I've ever set foot on, but at 25 feet,
it was getting tossed like a bathtub toy during a temper tantrum (it was a
two hands day), and the seas weren't bad that day by any means... 3 foot
waves. I'm trying to picture doing anything in the ocean with a support
barge and I just can't... unless it were just flat calm. Point for Zodiac
design. Maybe two Zodiacs I-beamed together with the sub slung in the
middle? ~ Doug S.
On Thu, Aug 11, 2016 at 8:57 PM, TOM WHENT via Personal_Submersibles <
personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> >
wrote:
Sorry wrong email replied to.
----- Original Message -----
From: TOM WHENT via Personal_Submersibles <personal_submersibles at psubs.
org <mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <
personal_submersibles at psubs. org <mailto:personal_submersibles at psubs.org>
>
Sent: Thu, 11 Aug 2016 18:55:23 -0600 (MDT)
Subject: Re: [PSUBS-MAILIST] Sub on a Zodiac carrier was AW: Maynard's
sub boat
I was just reading the news article about the terrorist they shot
yesterday in Strathroy... It seems they caught him one already and
released him on a peace bond - one of the conditions of which was that he
had to surrender any firearms and prohibited weapons.
----- Original Message -----
From: hank pronk via Personal_Submersibles <personal_submersibles at psubs.
org <mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <
personal_submersibles at psubs. org <mailto:personal_submersibles at psubs.org>
>
Sent: Thu, 11 Aug 2016 17:43:10 -0600 (MDT)
Subject: Re: [PSUBS-MAILIST] Sub on a Zodiac carrier was AW: Maynard's
sub boat
Hi Doug,
Are you thinking about taking the bottom out of a zodiac and driving the
sub into it. That is way better than a barge in my mind. You get the
benefit of flotation as well as a big ass bumper.
I had a crane on a barge and that worked well in the lake but in ocean
swells, that barge would beat a sub to death. I used a long sling on the
hook so that the sub did not come in contact with steel bouncing around.
But lakes are very tame in comparison.
Hank
On Thursday, August 11, 2016 4:10 PM, Douglas Suhr via
Personal_Submersibles <personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> > wrote:
Thwarted again by the 250's height! I really like this kind of
arrangement for it's simplicity though. And I think as far as keeping it
small, this might be the best way to manage launch and recovery in a
rough sea state. ~ Doug
On Thu, Aug 11, 2016 at 4:11 PM, Alan James via Personal_Submersibles <
personal_submersibles at psubs. org <mailto:personal_submersibles at psubs.org>
> wrote:
Yes, came through Carsten.
That's an interesting variation of what I've been suggesting.
I was looking at a K250 on a trailer; and they are fairly deep,
which would make it hard to design something like this to work
successfully.
It might start Cliff thinking, his sub would work well with a similar
design.
Alan
--------------------------------------------------------------------
From: "MerlinSub at t-online.de <mailto:MerlinSub at t-online.de> via
Personal_Submersibles" <personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <
personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> >
Sent: Friday, August 12, 2016 7:39 AM
Subject: [PSUBS-MAILIST] Sub on a Zodiac carrier was AW: Maynard's sub
boat
First picture. (testfile if the size work on these Psuns mails)
vbr Carsten
-----Original-Nachricht-----
Betreff: Re: [PSUBS-MAILIST] Maynard's sub boat
Datum: 2016-08-10T17:11:58+0200
Von: "James Frankland via Personal_Submersibles" <
personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> >
An: "Personal Submersibles General Discussion" <
personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> >
Hi carsten,
It would be great if you could find a picture. Sounds interesting.
Regards
James
On 10 August 2016 at 11:47, MerlinSub at t-online.de
<mailto:MerlinSub at t-online.de> via Personal_Submersibles <
personal_submersibles at psubs. org
<mailto:personal_submersibles at psubs.org> > wrote:

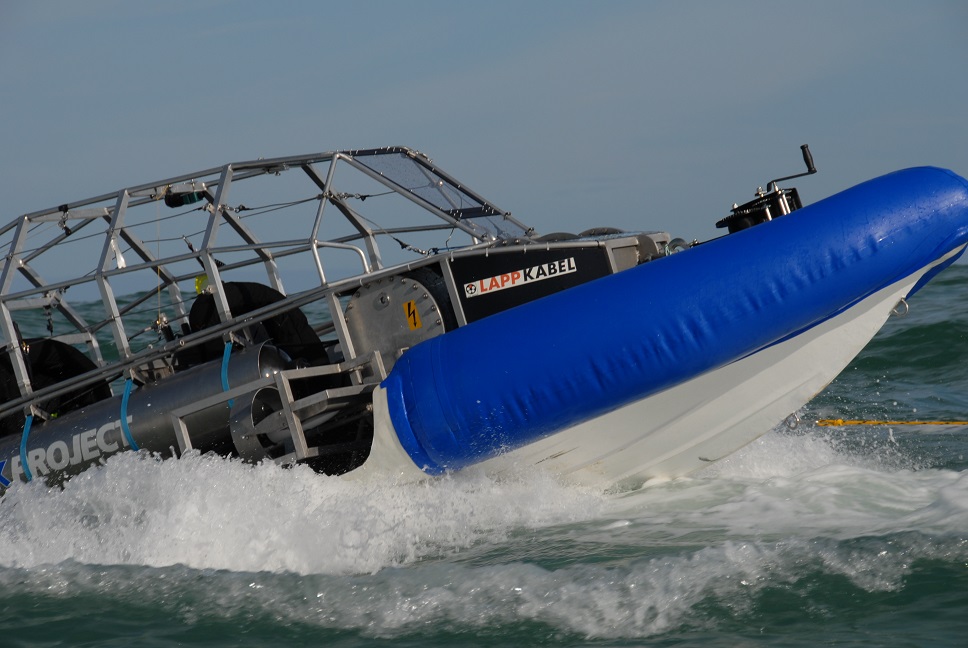

I have done such a concept for SOVI (Shark Observer vecicle) in South
Africa.
Was a semi flooding towing RIB behind a Motorboot with over 20 knots
towing speed.
Will search for a picture.
vbr Carsten
-----Original-Nachricht-----
Betreff: Re: [PSUBS-MAILIST] Maynard's sub boat
Datum: 2016-08-10T06:05:53+0200
Von: "Alan James via Personal_Submersibles" <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
An: "Personal Submersibles General Discussion" <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
This was a concept I was thinking about a while back.
Excuse the sketch.
The idea is to have a boat with twin outboards, & a consul up front.
You raise the motors & pump enough water into the side pontoons to be
able to drive the sub in & out. Maybe some assistance with a winch
when returning would be required. If the unit was designed properly
with a floor that could take the weight of the sub, then you could
trailer
both simultaneously. Alan
------------------------------------------------------------------
From: k6fee via Personal_Submersibles <mailto:personal_submersibles@
psubs.org <mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
Sent: Wednesday, August 10, 2016 2:12 PM
Subject: Re: [PSUBS-MAILIST] Maynard's sub boat
Hey, a sub on a sub!! I like it! �
Keith T
Sent from my Verizon, Samsung Galaxy smartphone
-------- Original message --------
From: Alan via Personal_Submersibles <mailto:personal_submersibles@
psubs.org <mailto:personal_submersibles at psubs.org> >
Date: 8/9/16 6:56 PM (GMT-08:00)
To: Personal Submersibles General Discussion <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
Subject: Re: [PSUBS-MAILIST] Maynard's sub boat
You mean like this Brian,
http://oceanexplorer.noaa.gov/ technology/subs/pisces/pisces-
training.html
<http://oceanexplorer.noaa.gov/technology/subs/pisces/pisces-training.html>
I was trying to describe this in an earlier post.
Alan
Sent from my iPad
On 10/08/2016, at 12:50 pm, Brian Cox via Personal_Submersibles <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> > wrote:
Seems like there ought to be a way to have another submersible
platform which cradles the K boat, then submerge to the bottom
leaving the "carrier boat" sitting on the bottom until ur ready
to go back home, then link back up with the carrier boat and
surface. The carrier boat would need to be big enough to travel
on the surface and keep the conning tower well above the surface
to avoid flooding. Of course many challenges with something like
that.
Brian
--- mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> wrote:al
From: Douglas Suhr via Personal_Submersibles <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
Subject: Re: [PSUBS-MAILIST] Maynard's sub boat
Date: Tue, 9 Aug 2016 20:15:00 -0400
Thanks for the history Vance, did not know. ~ Doug S.
On Tue, Aug 9, 2016 at 7:25 PM, via Personal_Submersibles <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> > wrote:
I sent a response via phone and haven't seen it. To repeat: I
do have some of George's original drawings on his tender. Web's
was a takeoff on that design and not terribly successful due to
poor load carrying capacity and so on. It worked, but was
pretty restricted in what it could do. George's was better,
hands down. 44' long as I recall. It started life with China
diesels which were achingly slow, and ended up with a couple of
junkyard 250 cid Chevy in-line 6 truck engines that worked very
well. And were cheap, which was an important consideration for
ANY consideration for the Captain.
Vance
-----Original Message-----
From: Brian Hughes via Personal_Submersibles <
mailto:personal_submersibles@ psubs.org
<mailto:personal_submersibles at psubs.org> >
To: personal_submersibles <mailto:personal_submersibles@
psubs.org <mailto:personal_submersibles at psubs.org> >
Sent: Tue, Aug 9, 2016 5:13 pm
Subject: [PSUBS-MAILIST] Maynard's sub boat
Did Maynard ever produce/release plans for his sub carrier,
Tender Nellie? I never saw it in person, but pictures lives on
the net.
http://johnmaynard.tripod.com/ sub2.html
<http://johnmaynard.tripod.com/sub2.html>
Get Outlook for Android <https://aka.ms/ghei36>
______________________________ _________________
Personal_Submersibles mailing list
mailto:Personal_Submersibles@ psubs.org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_
submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
mailto:Personal_Submersibles@ psubs.org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_
submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list mailto:Personal_Submersibles@
psubs.org <mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/ mailman/ listinfo.cgi/personal_
submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
mailto:Personal_Submersibles@ psubs.org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
mailto:Personal_Submersibles@ psubs.org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
mailto:Personal_Submersibles@ psubs.org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs. org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs. org
<mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs. org <mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
______________________________ _________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs. org <mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org <mailto:Personal_Submersibles at psubs.org>
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
<http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160812/3a2c6690/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Testfahrt 165a.jpg
Type: image/jpeg
Size: 195997 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160812/3a2c6690/attachment-0001.jpg>
More information about the Personal_Submersibles
mailing list
