[PSUBS-MAILIST] MK 2 Brushless Thruster

[Alan James via Personal_Submersibles]

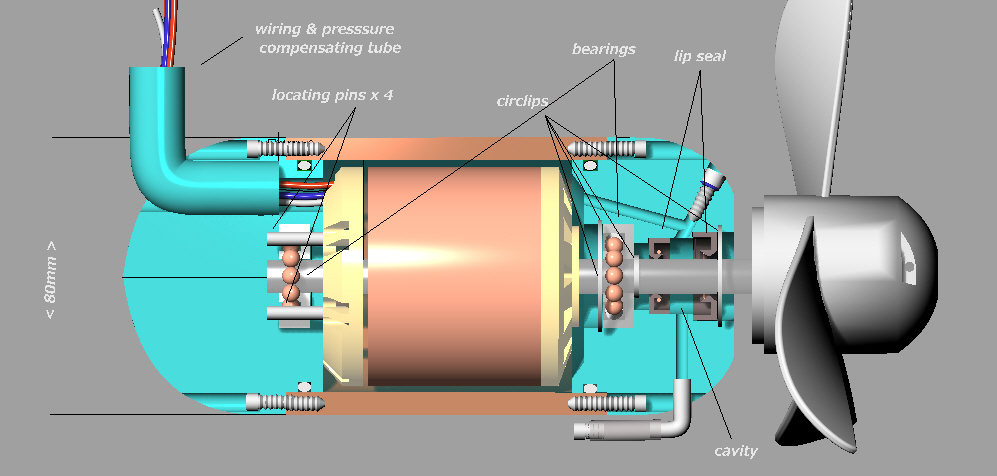

 Updated version with Hanks suggestion of a channel directto the motor cavity.I have also added a bearing at the wiring end of the motor shaft.I am not sure about this. It would be easier engineering wise, to locate the motor ina central back bearing & have the holes for the locating pins a bit over sized,rather than a tight fit. That way they would only serve to stop the rotation of the back section of the motor. According to my propeller calculator, adding anothershaft bearing will reduce the power output by 1.5%.Alan
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160401/a3652593/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: MK 2 Thruster 2 shaft bearings.jpg
Type: image/jpeg
Size: 170990 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160401/a3652593/attachment-0001.jpg>
