[PSUBS-MAILIST] Bulkhead Connector

[via Personal_Submersibles]

500' was standard. A K-250 was tank tested to 800+ with no hull damage (the acrylic semi imploded), and the K-350 built for a maritime cadet training academy in Japan spent several months at 600+ feet after being sunk with its mother ship in the Sea of Japan and was recovered without damage or leakage of any sort.
Vance



-----Original Message-----
From: glen brown via Personal_Submersibles <personal_submersibles at psubs.org>
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Sent: Mon, Feb 2, 2015 1:46 pm
Subject: Re: [PSUBS-MAILIST] Bulkhead Connector


Hi
Does anyone know the max depth a k350 has ever been tested to.


Thanks
Glen



On Mon, Feb 2, 2015 at 6:59 PM, James Frankland via Personal_Submersibles <personal_submersibles at psubs.org> wrote:


Hi Cliff,

Great!  Many thanks for that.  I'm relieved.

Regards
James




On 2 February 2015 at 16:38, Cliff Redus via Personal_Submersibles <personal_submersibles at psubs.org> wrote:




James, I have this bulkhead connector on my boat.  I went out to my shop and did the wiggle test.  Yes it feel rubbery so I think there is good chance that no damage was done.


Cliff












   From: James Frankland via Personal_Submersibles <personal_submersibles at psubs.org>
 To: "personal_submersibles at psubs.org" <personal_submersibles at psubs.org>
 Sent: Monday, February 2, 2015 10:06 AM
 Subject: [PSUBS-MAILIST] Bulkhead Connector






Hi All,
Could someone please do me a favour?

I have the BH4F low power bulkhead connector fitted to my boat.  Its running the transducer for the underwater comms.

The other day I was moving the boat with trolley jacks and I think I may have hit the bulkhead connector as I jacked it up.

The connector is fitted together with the male part and the 2 red retaining caps are screwed together.  If I take the clips apart, and wiggle the two connectors, they feel "rubbery".  Trouble is im not sure if it was like this before or if its been damaged.

The radio still works ok and separating the connector shows no sign of damage, but im not 100% sure I still haven't damaged something inside the connector.  I've just got the feeling something is broken inside and its now just touching together to make the connection.

Can someone with this type of connector on their boat, unscrew the red retaining caps and let me know if the assembly feels a bit rubbery, or if its solid?

Thanks in advance!
James



​
​





_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles







_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles






_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles





_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150202/53aaf856/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

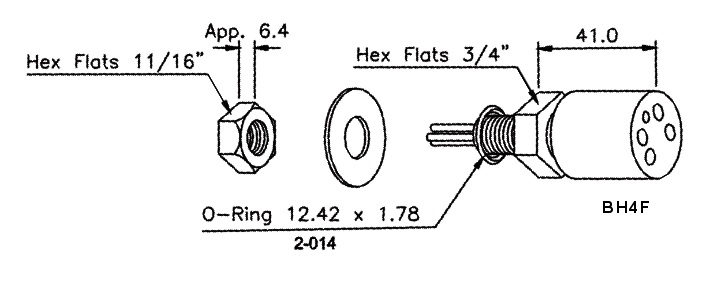

Name: BH4F.jpg
Type: image/jpeg
Size: 43661 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150202/53aaf856/attachment-0001.jpg>
