Hi Alec,
Thanks for the explanation, I'm a bit vague on these things & it looks like I'll have to learn.
I'm probably about 6 months off making a decision on a PLC but that looks like what
I need. I had been looking at using a rebreather system for life support, where they
monitor the input of 3 O2 sensors & take the average reading of the closest 2.
James Cameron had his life support system based on the rebreather & built  by Ambient
Pressure Diving who make the Inspiration rebreather.
I was going to approach APD but It seems a relatively easy system to replicate on a PLC.
I like the electronic compass I posted, with the yaw pitch & roll & graphics software.
They state....... The 5000-US software includes a USB to serial port driver, facilitating a quick connection between the compass and your Windows based system. Compasses can also be connected to a host system using Microsoft Hyperterm or other terminal programs.
I am not sure if I can connect this to a PLC with Microsoft Hyperterm. But buying something with the
graphics program already written would be a big advantage. Any knowledge as to whether I
can connect this to any PLC?

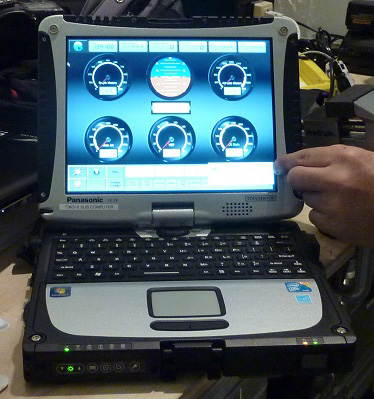

I took a photo of the Triton computer/PLC. (attached bottom of page) It does have a windows logo
on the keyboard but I think the screen detaches & runs independantly, so may be a PLC.
All confusing to me. See what you think.
Alan

________________________________
 From: "Smyth, Alec" <Alec.Smyth at covisint.com>
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Sent: Wednesday, January 15, 2014 3:23 AM
Subject: Re: [PSUBS-MAILIST] Compass Choice

Hi Alan,

I think Triton use a PLC, because I spied a switch labeled “PLC Off” on their control panel. Years ago I got a PLC, a touch screen, and all the associated sensors together, and wrote the code for it. Cliff and I picked the same equipment and shared our code, and you may have seen his R-300 runs everything off a touch screen. It’s a very neat approach because you can let the PLC concentrate on background monitoring (e.g. O2 levels, pressures) while letting the pilot concentrate on the driving. Personally, I’m headed in the opposite direction nowadays, designing my new boat to have minimal electronics for reliability and ease of maintenance. But I still have a box full of all this hardware, and if anyone is interested in installing it on their sub they can have it for a tiny fraction of what it would cost new.

A PLC is a sort of industrial computer, much simpler and more rugged than a PC. It has no hard drive to fail, and you won’t get the “blue screen of death” like on a PC. The logic runs in a continuous loop, monitoring parameters and taking action when conditions you specify are met. For instance, for life support you can say if cabin pressure drops below X, then open a valve to inject O2. Later in the loop, a similar clause would close the valve if cabin pressure rises above Y. The scrubber would remove CO2 continuously, and the PLC add O2 to keep the cabin pressure between X and Y. Other alarms would go off if tank pressures are getting too low, if max depth is exceeded, etc. etc.

Best,

Alec

From:Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] On Behalf Of Alan James
Sent: Tuesday, January 14, 2014 2:02 AM
To: Personal Submersibles General Discussion
Subject: Re: [PSUBS-MAILIST] Compass Choice

Hi Douglas,
I'll do a bit of homework on this.
I had a look at the Triton 3000 when it visited N.Z. & it was monitoring
just about everything off a computer. They were talking of moving to
smaller computers & maybe strapping them to their thighs, so that the screen
didn't impinge on their view. Other submersibles I've seen similarly monitor
a lot of functions off the computer.
I like this little computer with a 4.8" screen.
http://www.dynamism.com/top-notebooks/viliv-s5-premium.shtml
It runs windows so would be compatable with the Ocean Server compass.
Cheers, Alan

________________________________

From:Douglas Suhr <spiritofcalypso at gmail.com>
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Sent: Tuesday, January 14, 2014 4:59 PM
Subject: Re: [PSUBS-MAILIST] Compass Choice

Nice find Alan. I'm going to spend some time looking over that site. I have to admit though, I feel the same as you in terms of not wanting to run my compass off a computer. To me, computers should be benefitted from but not relied upon unconditionally. ~ Douglas S.

On Mon, Jan 13, 2014 at 10:45 PM, Alan James <alanlindsayjames at yahoo.com> wrote:
Hi Jon,
>I found this off the shelf unit for $250- (made in USA) It is designed for marine applications
>& has yaw, pitch & roll which is a G.L. requirement. So it's looking attractive.
>http://www.ocean-server.com/compass.html
>It looks like I would have to run it off a computer though, which I didn't want to do,
>but may be forced down this path.
>Alan
>
>
>
>________________________________
>
>From:Jon Wallace <jonw at psubs.org>
>
>To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
>Sent:Tuesday, January 14, 2014 2:09 PM
>
>Subject: Re: [PSUBS-MAILIST] Compass Choice
>
>
>A tilt-compensated electronic compass (three axis, plus three axis
>accelerometer) would work connected to a small microcontroller like the
>Arduino UNO.  The HMC6352 was the standard but Honeywell stopped
>producing them.  There are others however but probably more expensive.
>The display could be a nice four digit LED (under two inches).
>
>Jon
>
>
>_______________________________________________
>Personal_Submersibles mailing list
>Personal_Submersibles at psubs.org
>http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
>_______________________________________________
>Personal_Submersibles mailing list
>Personal_Submersibles at psubs.org
>http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles

_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles

_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
