GRP/Steel Battery Box

About:

Contributor: Ian Roxborough
Last update: 25 Apr 2002

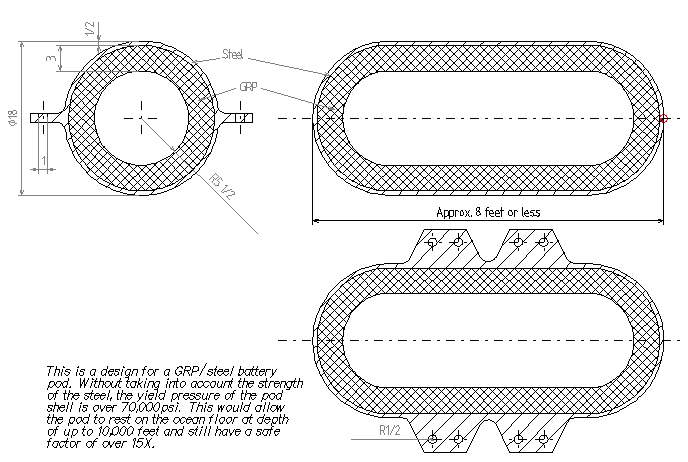

Scope: This is a drawing based on an idea of a GRP/steel battery pod which can withstand great depths while keeping costs (and weight) down.

There are a number of things missing on this diagram, such as thru-hull electical connections, as well as a removable end cap so that batteries can be serviced or replaced when needed. Please keep in mind that my figures for yield pressure maybe wrong and are only a guide.
box
