RE: [PSUBS-MAILIST] Uploading large schematics (was K1000 blueprint)

Hello all

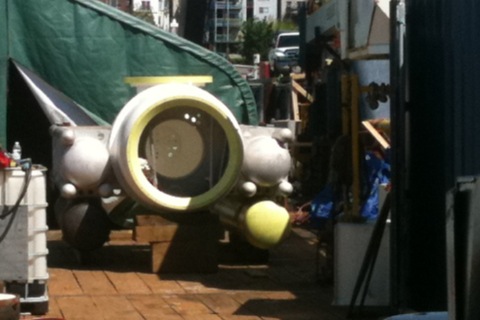

I am looking for some info I would like to guile much the same Manipulator for PVR2 or DSH2 is this an open source item or is there prints available for it, and things moving along nicely mated the hull to the ballast tanks today looks like the shuttle from star trek

Any help will greatly be appreciated

Brian V. Ryder

brian@subatlantic.com

CONFIDENTIALITY NOTICE: This e-mail message, including any attachments, is for the sole use of the intended recipient(s) and may contain confidential and privileged information or otherwise be protected by law. Any unauthorized review, use, disclosure or distribution is prohibited. If you are not the intended recipient, please contact the sender by reply e-mail and destroy all copies of the original message.

From: owner-personal_submersibles@psubs.org [mailto:owner-personal_submersibles@psubs.org] On Behalf Of landnseawelding
Sent: Tuesday, April 20, 2010 1:59 PM
To: personal_submersibles@psubs.org
Subject: Re: [PSUBS-MAILIST] Uploading large schematics (was K1000 blueprint)

I am going to fabricate the same thing on my K-350 about the same size but have some questions for Dan. Does the claw rotate?, as I understand it this system is pneumatic. Why did you choose pneumatic over hydraulic? it must be an open circuit system fed off of a scuba tank and vented to atmosphere?

Thanks

Rick P.

----- Original Message -----

From: ShellyDalg@aol.com

To: personal_submersibles@psubs.org

Sent: Tuesday, April 20, 2010 7:13 AM

Subject: Re: [PSUBS-MAILIST] Uploading large schematics (was K1000 blueprint)

I use the camera and then download the picture into the "paint" program that comes with every computer.

The resolution, size, and format can then be manipulated easily.

If I have a photo or drawing I want to share I shrink it down to 6" X 4" and then use the "right click" button to insert it into the email message. It only takes up a small amount of space. Using the JPEG format reduces clarity when it's shrunk that small but it goes through quickly.

Here's a sample......

The original photo was quite large when put into the paint program. It took up 4 computer screens. I then shrink it to 50% original size, change it to JPEG and save the new shrunken picture in a "send" folder.

When I'm writing a "reply" to the mail list I click the right button on the mouse and then click on "insert picture"

The pictures in "paint" pop up and I just double click on one in the "send" folder and it pops into the text mail page as a small picture.

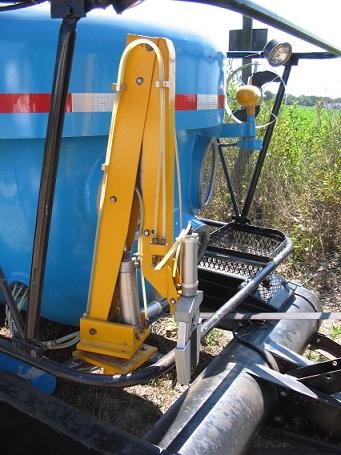

This is Dan's "picker" from Michigan.

Frank D.
