Re: [PSUBS-MAILIST] elliptical heads/ Git Kraken

[Jon Wallace <jonw@psubs.org>]

Frank, Dan,

Here's a reference to a document I found (about the ONLY reference I
have found) that talks about stiffening rings for elliptical heads.
Unfortunately it deals with internal pressure (muffler for a tank gun)
rather than external pressure, but hopefully there is something useful
in it.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=ADA241063&Location=U2&doc=GetTRDoc.pdf

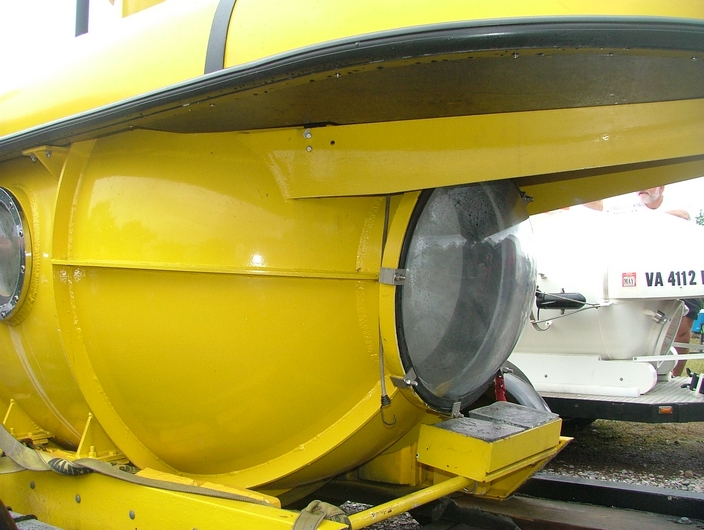

Also, you might want to talk to Greg Cottrel since he has a similar
design (albeit hemi's instead of elliptical heads).

http://www.psubs.org/convention/2006/photos/GregCottrelSub/2006_0624Image0054.JPG

Jon



ShellyDalg@aol.com wrote:
> In a message dated 10/31/2009 2:10:53 P.M. Pacific Standard Time,
> lanceind@earthlink.net writes:
>
>     To determine a safe dive depth I would have an engineer with
>     pressure vessel experience look at it for you.
>
> Good advice Dan.
>  On the stiffeners being where the 6 inch center ring is.....Sorry,
> don't agree. I've cut big holes in the heads seriously reducing
> the inherent "dome" strength. To stiffen the hull I'll be using 1/2
> inch X 4 inch stiffener pieces cut to fit the inside curvature. They
> will attach to the hatch ring which protrudes down into the sub 4
> inches and carry down along the hull interior to the "grid" pattern of
> floor stiffeners. Yes, a little like the ribs on a pumpkin.
> The floor "grid" serves a couple of purposes. Obviously to stiffen the
> bottom, but also to make a solid base where all the vertical
> stiffeners will meet. Also the "pockets" created by the floor grid
> will hold the lead ballast bricks which will be poured into shapes to
> match each pocket.
> The weakest place on the hull is of course around the windows.
> Additional stiffeners will be installed there.
> I haven't finalized the stiffener design yet, but basically I'll be
> getting some professional help with this to determine how close the
> vertical stiffeners need to be, and what type of cross bracing it needs.
> I may find that adding some extra reinforcing is required around the
> window and hatch holes. Much like the early  K boats, where a big
> piece of steel equal to the amount cut out for the tower was added to
> the tower/hull connection perimeter. That was a standard method used
> by tank builders when a hole was cut in.
> Again, a serious professional FEA study will be required to obtain a
> safe operating depth.
> Thanks for the advice. _All_ thoughts and critisism are welcome.
> Frank D.
>




************************************************************************
************************************************************************
************************************************************************
